VisioLogix’s cutting-edge body-worn camera, the VLX PC1 4G, harnesses the capabilities of Artificial Intelligence to foster situational awareness through Voice Recognition, Sensors, and IoT Smart Devices. Its innovative design is geared toward unearthing unadulterated truth without necessitating officer intervention, thus fostering trust even in high-stress scenarios. This device seamlessly integrates with VLX automated activation, which encompasses vehicle sensors, pursuit recording, and the removal of background audio noise. Four microphones operate concurrently to capture pristine audio with noise reduction capabilities. The PC1 4G is equipped with real-time data processing and delivers live stream via LTE connectivity (requires 4G cellular service). Leveraging a range of advanced artificial intelligence technologies, the PC1 4G empowers officers in every critical scenario.

Included with the Camera Kit

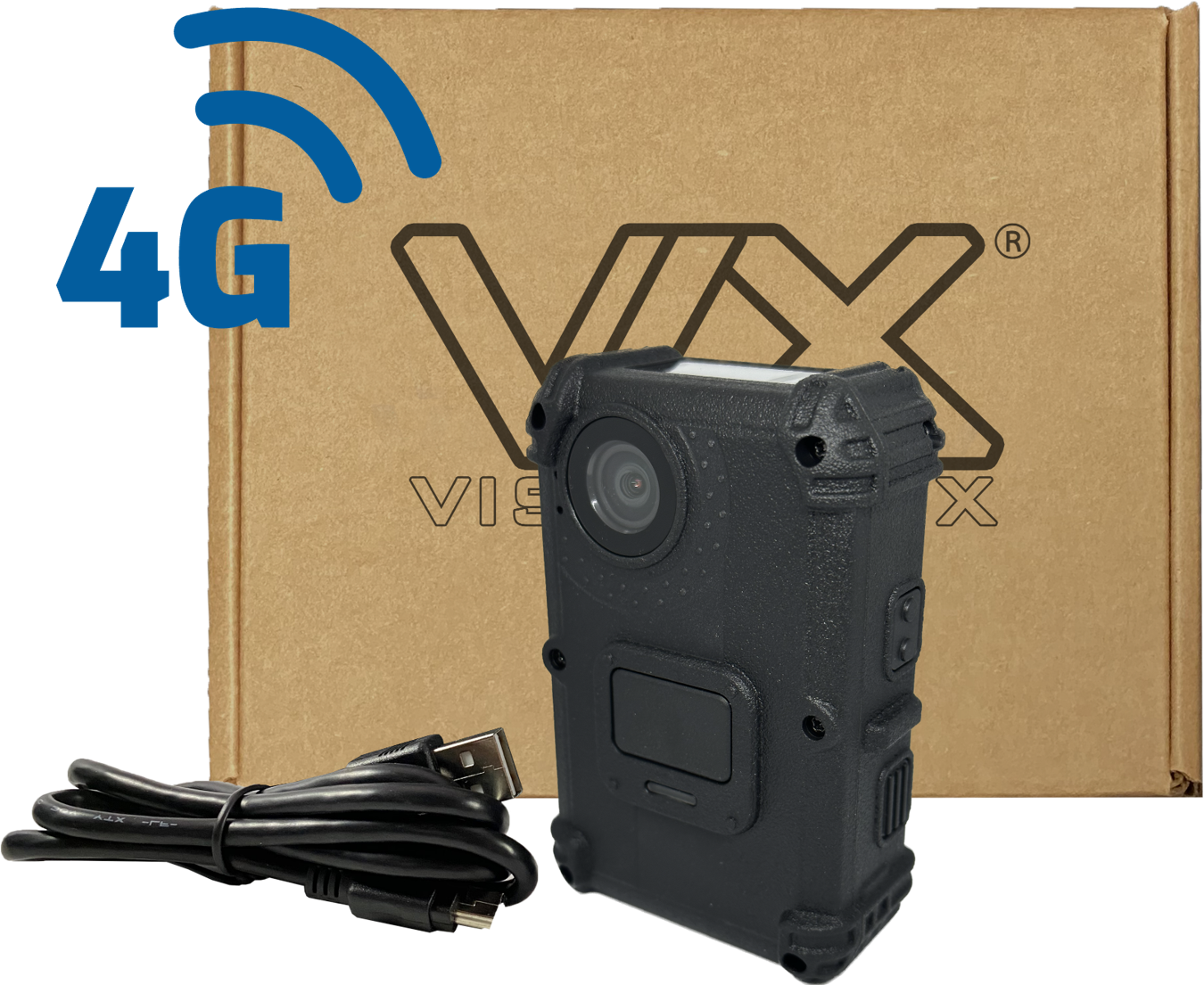

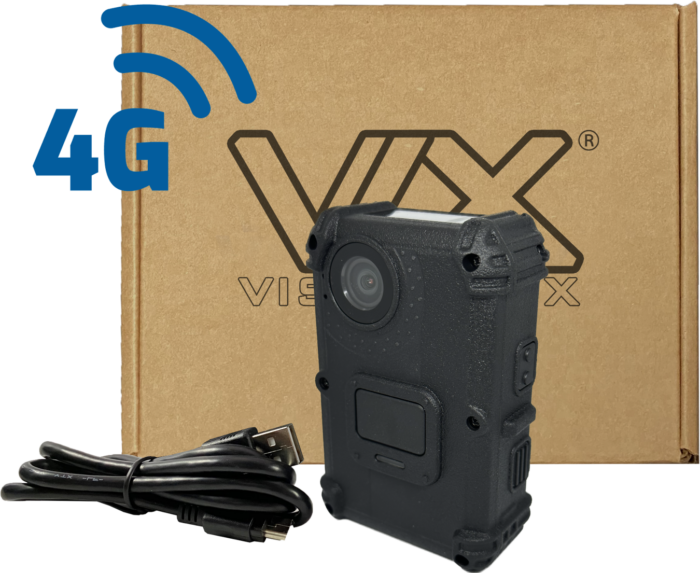

  • PC1 4G Camera
  • Secure Camera Clip Kit
  • High-Quality 1 Meter (~3 feet) USB Cable (22/24AWG)



*The information contained herein is subject to change without notice and is provided “as is” without warranty of any kind. The warranties for VisioLogix products are set forth in the express limited warranty statements accompanying such products. Nothing herein should be construed as constituting an additional warranty. VisioLogix shall not be liable for pricing, technical and editorial errors or omissions contained herein.

Free worldwide deliveries

Find stores near you

Best prices guarranteed

All credit card accepted

VLX PC1 4G Overview

VisioLogix introduces CITE PC1 4G, a Body Worn Camera (BWC) designed for the next decade using feedback from multiple law enforcement agencies worldwide. The PC1 4G is engineered for a low-cost, durable, wireless recording activation multi-role BWC, providing both overt and covert operation using optional attachments. The PC1 4G H.265 capability allows the camera to store more data and uses less space, thus allowing for a longer battery life.

Over 50,000 unit deployed worldwide.

When matched with VLX’s comprehensive EMS, our evidence management solution, the VLX-PC1 4G offers comprehensive automation when deploying and managing cameras, media files and metadata.

UNIQUE FEATURES

  • Brazilian based manufactured body-worn camera
  • TAA Compliant
  • Single-button push command.
  • Never miss an event
    • Power-on Recording at Low resolution and frame rate
    • High resolution and 30 frame per second when video recording button is pushed.
  • Full HD 1440P@30, 1296P@30, 1080P@30, 720P@30 and D1@30.
  • Up to 12 Hours of Continuous Video Recording at 1080P 30FPS
  • H.265 and H.264 support.
  • Anti-Shake with enhanced Electronic Image Stabilization (EIS)
  • AES256 Data Protection
  • Rated at IP65 (Waterproof and Dust Proof).
  • ONVIF Compatible.
  • 30 Seconds Pre-Recording.
  • Up to 5 Minutes Post-Recording.
  • 802.11 b/g/n/ac (2.4/5GHz) Wireless.
  • including 4G module for Live Stream
  • Bluetooth activation with Holster Activation Sensor.
  • Integrated GPS and Sensor.
  • Standard 64GB Storage (not user accessible). up to 256GB available.
  • Access to camera is restricted.
  • EMS Mobile App available to Annotate in the field.
  • Long battery life with 4-hour charging time.
  • 4000mA Li-ion battery.
  • Single button Covert Operation – disabled all indicators (LED and Audio).
  • Easily set camera settings by saving different camera profile types.
  • Password Protection access to Camera.
  • Optimal Low Light close to human eye.
  • Long Lasting docking mechanism.



CITE™ PC1 4G
SPECIFICATIONS
Product features 1. High Definition 1440P H.265 and H.264 video coding.
2. 140°angle lens, with distortion correction.
3. Never miss an event with Power-on Recording.
4. IP65 protection.
5. Bluetooth Activation with optional holster sensor.
LCD Display Small LCD Display on top of camera.
Lens (Angle) FOV (123°H/170°V) 140° Wide Angle.
Video 2560*1440(30fps), 2304×1296(30fps), 1920*1080(30fps),1280 *720(60fps or 30fps), 848*480/(30fps). H.265/H.264 encode, MP4 format, synchronization of audio and video; seamless record (including the function of segment record, cycle record and capture record).
Stamps overlaying Badge ID, Date/Time, GPS.
Recording Four High-sensitivity mic, support separate recording, WAV, AI-Based background noised reduction.
LCD Display 2″ LCD Color Screen (top of camera)
Wireless YES, 4G included.
Playback Video playback via VLX’s EMS Mobile App.
Buttons Large Front Camera Recording, Power, Function, Reset.
Camera Log All buttons pushed.
LED Indicators Recording and Status.
USB and Password USB 2.0 interface, charging function.
Storage 64GB (256GB Max – not field up gradable).
System settings Set various parameters. Such as, the time correction, screen off time, save battery, resolution, and so on.
Battery 4000mA polymer battery, direct charger, 4-hour charging time.
Continuous Recording  Estimated Hours: 12H(1080P); 13H(720P); 14H(D1). LED, GPS and Audio indicators set to OFF.
Live Stream Live Streaming via 4G (requires 4G cellular service).
Standby time About 24H.
Professional back clip Can be worn on the shoulder or the waist, lens can rotate 180 degrees and fixed.
Free software CITE Configuration Tool (CCT) to download data and Change Camera Settings. Web based Evidence Management System is optional.
Pre and Post Recording 30s (Pre), up to 5, 10, 60 Seconds – 5 Minutes
Indicators LED, Tone, Audio, Vibrate.
Single Button to Turn Off for Covert Operation.
Video Tagging/Marking Available in EMS Mobile. SmartApp for Android.
Camera Menu Controls Admin can restrict Camera Menu by listing certain menu items only on the camera.
Software Control Camera Settings Yes
Multi-Language Support English, Chinese (Simplified), Chinese (Traditional), French, German, Italian, Russian, Spanish, Ukrainian.
Mobile Client (Classify in the field) Use EMS Mobile Client (Windows based) work in conjunction with IDS Upload Station.
Working temperature -10° – 60° C (14° – 140° F).
Working humidity 10%-90%.
Dimensions (LxWxH) 84.5 x 56.3 x 27.3mm (3.58”x2.24”x1.14”).
Weight 286g (9.23 oz).
IP Rating IP68
Drop Test1 6 feet (1.8M) All drop test performed in function and non-function mode are based on US Military standards MIL-STD-810G 516.6.
Desktop/Vehicle Dock Station Optional
Magnetic Mount Optional
WiFi/BT Module Yes (AP6256 Based Chipset)
8-Port Docking Station Optional. Upload and Charging (1Gbps).
Additional cost for Optional accessories Please contacts VisioLogix for Pricing. Camera Bracket, Vehicle Mounts, etc.
Warranty 1 Year





*The information contained herein is subject to change without notice and is provided “as is” without warranty of any kind. The warranties for VisioLogix products are set forth in the express limited warranty statements accompanying such products. Nothing herein should be construed as constituting an additional warranty. VisioLogix shall not be liable for pricing, technical and editorial errors or omissions contained herein.

Related products

Description

VLX PC1 4G Overview

VisioLogix introduces CITE PC1 4G, a Body Worn Camera (BWC) designed for the next decade using feedback from multiple law enforcement agencies worldwide. The PC1 4G is engineered for a low-cost, durable, wireless recording activation multi-role BWC, providing both overt and covert operation using optional attachments. The PC1 4G H.265 capability allows the camera to store more data and uses less space, thus allowing for a longer battery life.

Over 50,000 unit deployed worldwide.

When matched with VLX’s comprehensive EMS, our evidence management solution, the VLX-PC1 4G offers comprehensive automation when deploying and managing cameras, media files and metadata.

UNIQUE FEATURES

  • Brazilian based manufactured body-worn camera
  • TAA Compliant
  • Single-button push command.
  • Never miss an event
    • Power-on Recording at Low resolution and frame rate
    • High resolution and 30 frame per second when video recording button is pushed.
  • Full HD 1440P@30, 1296P@30, 1080P@30, 720P@30 and D1@30.
  • Up to 12 Hours of Continuous Video Recording at 1080P 30FPS
  • H.265 and H.264 support.
  • Anti-Shake with enhanced Electronic Image Stabilization (EIS)
  • AES256 Data Protection
  • Rated at IP65 (Waterproof and Dust Proof).
  • ONVIF Compatible.
  • 30 Seconds Pre-Recording.
  • Up to 5 Minutes Post-Recording.
  • 802.11 b/g/n/ac (2.4/5GHz) Wireless.
  • including 4G module for Live Stream
  • Bluetooth activation with Holster Activation Sensor.
  • Integrated GPS and Sensor.
  • Standard 64GB Storage (not user accessible). up to 256GB available.
  • Access to camera is restricted.
  • EMS Mobile App available to Annotate in the field.
  • Long battery life with 4-hour charging time.
  • 4000mA Li-ion battery.
  • Single button Covert Operation – disabled all indicators (LED and Audio).
  • Easily set camera settings by saving different camera profile types.
  • Password Protection access to Camera.
  • Optimal Low Light close to human eye.
  • Long Lasting docking mechanism.



CITE™ PC1 4G
SPECIFICATIONS
Product features 1. High Definition 1440P H.265 and H.264 video coding.
2. 140°angle lens, with distortion correction.
3. Never miss an event with Power-on Recording.
4. IP65 protection.
5. Bluetooth Activation with optional holster sensor.
LCD Display Small LCD Display on top of camera.
Lens (Angle) FOV (123°H/170°V) 140° Wide Angle.
Video 2560*1440(30fps), 2304×1296(30fps), 1920*1080(30fps),1280 *720(60fps or 30fps), 848*480/(30fps). H.265/H.264 encode, MP4 format, synchronization of audio and video; seamless record (including the function of segment record, cycle record and capture record).
Stamps overlaying Badge ID, Date/Time, GPS.
Recording Four High-sensitivity mic, support separate recording, WAV, AI-Based background noised reduction.
LCD Display 2″ LCD Color Screen (top of camera)
Wireless YES, 4G included.
Playback Video playback via VLX’s EMS Mobile App.
Buttons Large Front Camera Recording, Power, Function, Reset.
Camera Log All buttons pushed.
LED Indicators Recording and Status.
USB and Password USB 2.0 interface, charging function.
Storage 64GB (256GB Max – not field up gradable).
System settings Set various parameters. Such as, the time correction, screen off time, save battery, resolution, and so on.
Battery 4000mA polymer battery, direct charger, 4-hour charging time.
Continuous Recording  Estimated Hours: 12H(1080P); 13H(720P); 14H(D1). LED, GPS and Audio indicators set to OFF.
Live Stream Live Streaming via 4G (requires 4G cellular service).
Standby time About 24H.
Professional back clip Can be worn on the shoulder or the waist, lens can rotate 180 degrees and fixed.
Free software CITE Configuration Tool (CCT) to download data and Change Camera Settings. Web based Evidence Management System is optional.
Pre and Post Recording 30s (Pre), up to 5, 10, 60 Seconds – 5 Minutes
Indicators LED, Tone, Audio, Vibrate.
Single Button to Turn Off for Covert Operation.
Video Tagging/Marking Available in EMS Mobile. SmartApp for Android.
Camera Menu Controls Admin can restrict Camera Menu by listing certain menu items only on the camera.
Software Control Camera Settings Yes
Multi-Language Support English, Chinese (Simplified), Chinese (Traditional), French, German, Italian, Russian, Spanish, Ukrainian.
Mobile Client (Classify in the field) Use EMS Mobile Client (Windows based) work in conjunction with IDS Upload Station.
Working temperature -10° – 60° C (14° – 140° F).
Working humidity 10%-90%.
Dimensions (LxWxH) 84.5 x 56.3 x 27.3mm (3.58”x2.24”x1.14”).
Weight 286g (9.23 oz).
IP Rating IP68
Drop Test1 6 feet (1.8M) All drop test performed in function and non-function mode are based on US Military standards MIL-STD-810G 516.6.
Desktop/Vehicle Dock Station Optional
Magnetic Mount Optional
WiFi/BT Module Yes (AP6256 Based Chipset)
8-Port Docking Station Optional. Upload and Charging (1Gbps).
Additional cost for Optional accessories Please contacts VisioLogix for Pricing. Camera Bracket, Vehicle Mounts, etc.
Warranty 1 Year





*The information contained herein is subject to change without notice and is provided “as is” without warranty of any kind. The warranties for VisioLogix products are set forth in the express limited warranty statements accompanying such products. Nothing herein should be construed as constituting an additional warranty. VisioLogix shall not be liable for pricing, technical and editorial errors or omissions contained herein.

Additional information

Weight 284 g
Dimensions 70.1 × 27.7 × 95.0 mm
