VisioLogix’s cutting-edge body-worn camera, the V1x, harnesses the capabilities of Artificial Intelligence to foster situational awareness through Voice Recognition, Sensors, and IoT Smart Devices. Its innovative design is geared toward unearthing unadulterated truth without necessitating officer intervention, thus fostering trust even in high-stress scenarios. This device seamlessly integrates with VLX automated activation, which encompasses vehicle sensors, pursuit recording, and the removal of background audio noise. Four microphones operate concurrently to capture pristine audio with noise reduction capabilities. The V1x is equipped with built-in AI-powered real-time data processing and delivers push notifications via LTE connectivity. Leveraging a range of advanced artificial intelligence technologies, the V1x empowers officers in every critical scenario.

Included with the Camera Kit

  • V1 Camera
  • Secure Camera Clip Kit
  • High-Quality 1 Meter (~3 feet) USB Cable (22/24AWG)
  • Optional 4G Model



*The information contained herein is subject to change without notice and is provided “as is” without warranty of any kind. The warranties for VisioLogix products are set forth in the express limited warranty statements accompanying such products. Nothing herein should be construed as constituting an additional warranty. VisioLogix shall not be liable for pricing, technical and editorial errors or omissions contained herein.

Categories: Tags: , , , , , , , , , , SKU: 032-1000

Free worldwide deliveries

Find stores near you

Best prices guarranteed

All credit card accepted

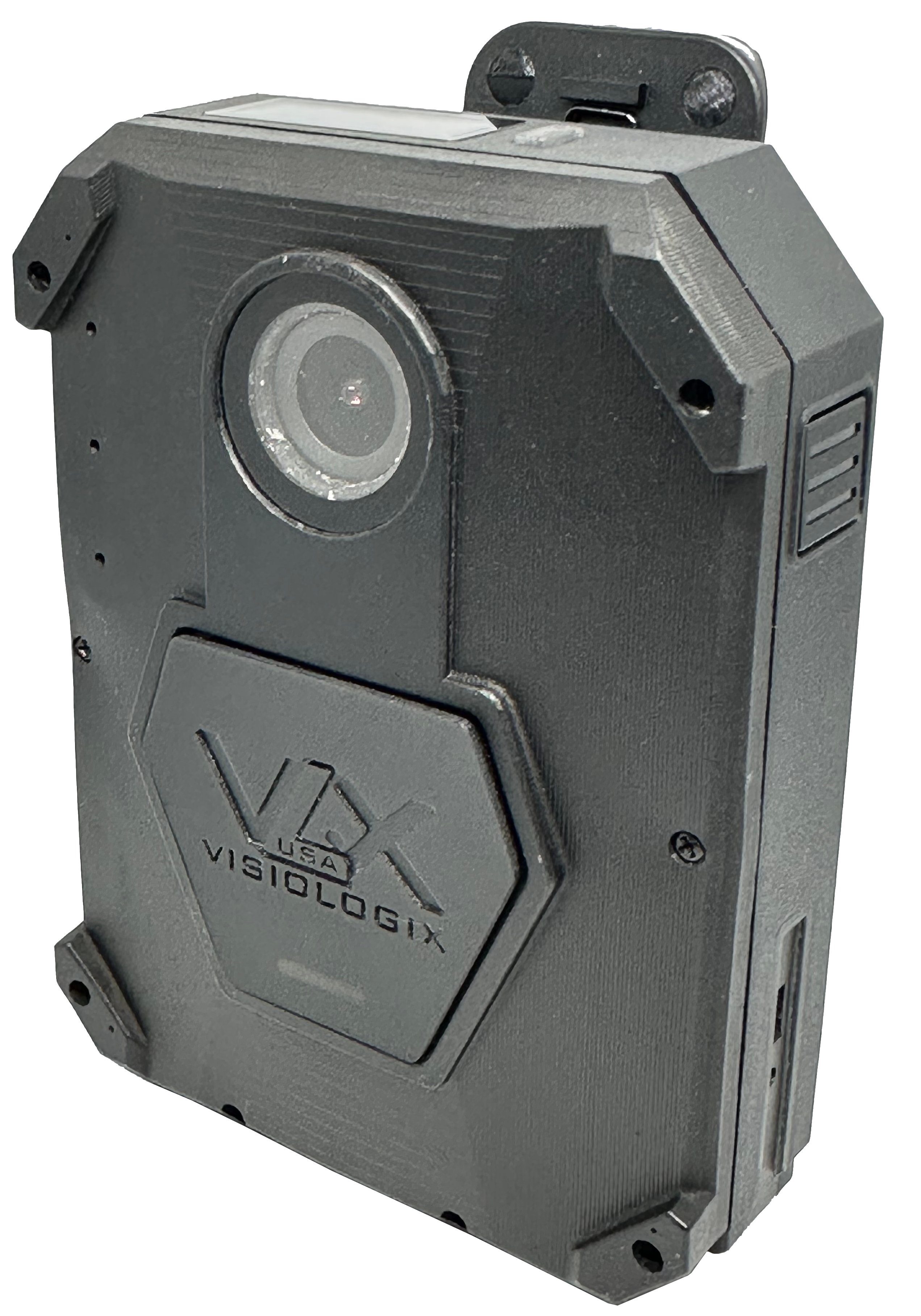

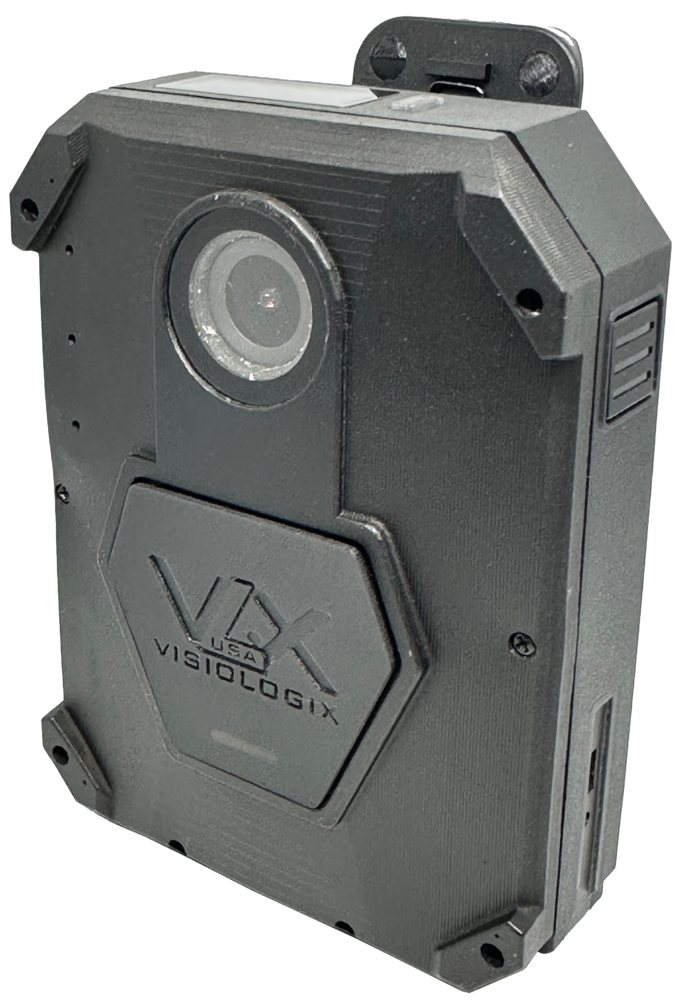

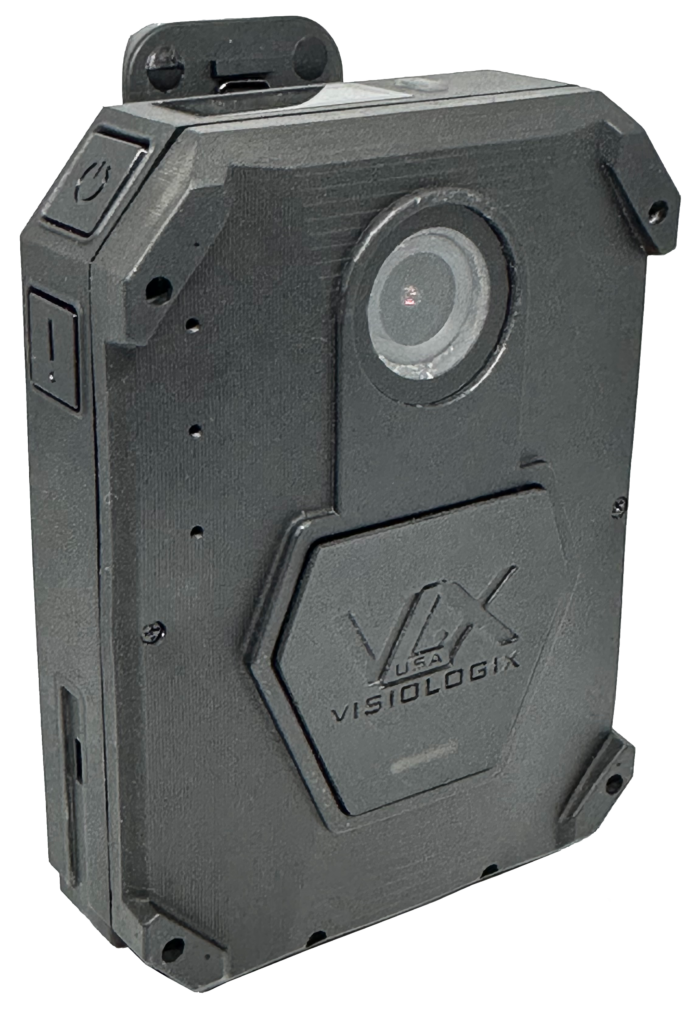

V1X Overview

VisioLogix introduces CITE V1X, an AI-Based Body Worn Camera (BWC) designed for the next decade using feedback from multiple law enforcement agencies worldwide. The V1X is engineered as a multi-role BWC providing both overt and covert operation using optional attachments. V1 H.265 capability allows the camera to store more data, uses less space thus allowing for longer battery charge.

MULTIPLE Worldwide Law Enforcement Agencies’ feedback goes into making the V1X.

When matched with VLX’s comprehensive EMS, our evidence management solution, the V1X offers comprehensive automation when deploying and managing cameras, media files and metadata.

UNIQUE FEATURES

  • Single-button push command.
  • IP Based Management
  • Multiple Camera Management Tool.
  • Full HD 1080P@30, 720P@30 and D1@30.
  • H.265 and H.264 support.
  • Configurable up to 120s Pre/Post settings.
  • Limit user to make changes to camera parameters.
  • Rated at IP67 (Waterproof and Dust Proof).
  • MIL-STD-810G Certified.
  • 802.11 b/g/n/ac (2.4/5GHz) Wireless.
  • Optional LTE (4G Model).
  • NFC for device synchronization.
  • Bluetooth activation.
  • Integrated GPS and Sensor.
  • Audio voice announcement now included multi-language (RECORDING, AUDIO RECORDING, STOP, etc.).
  • Standard 64GB Storage (not user accessible). up to 256GB available.
  • Access to camera is restricted.
  • EMS Mobile App available to Annotate in the field.
  • Long battery life with 4-hour charging time.
  • 4000mA Li-ion battery (field hot-swappable).
  • Single button Covert Operation – disabled all indicators (LED and Audio).
  • Easily set camera settings by saving different camera profile types.
  • Password Protection access to Camera.
  • Optimal Low Light close to human eye.

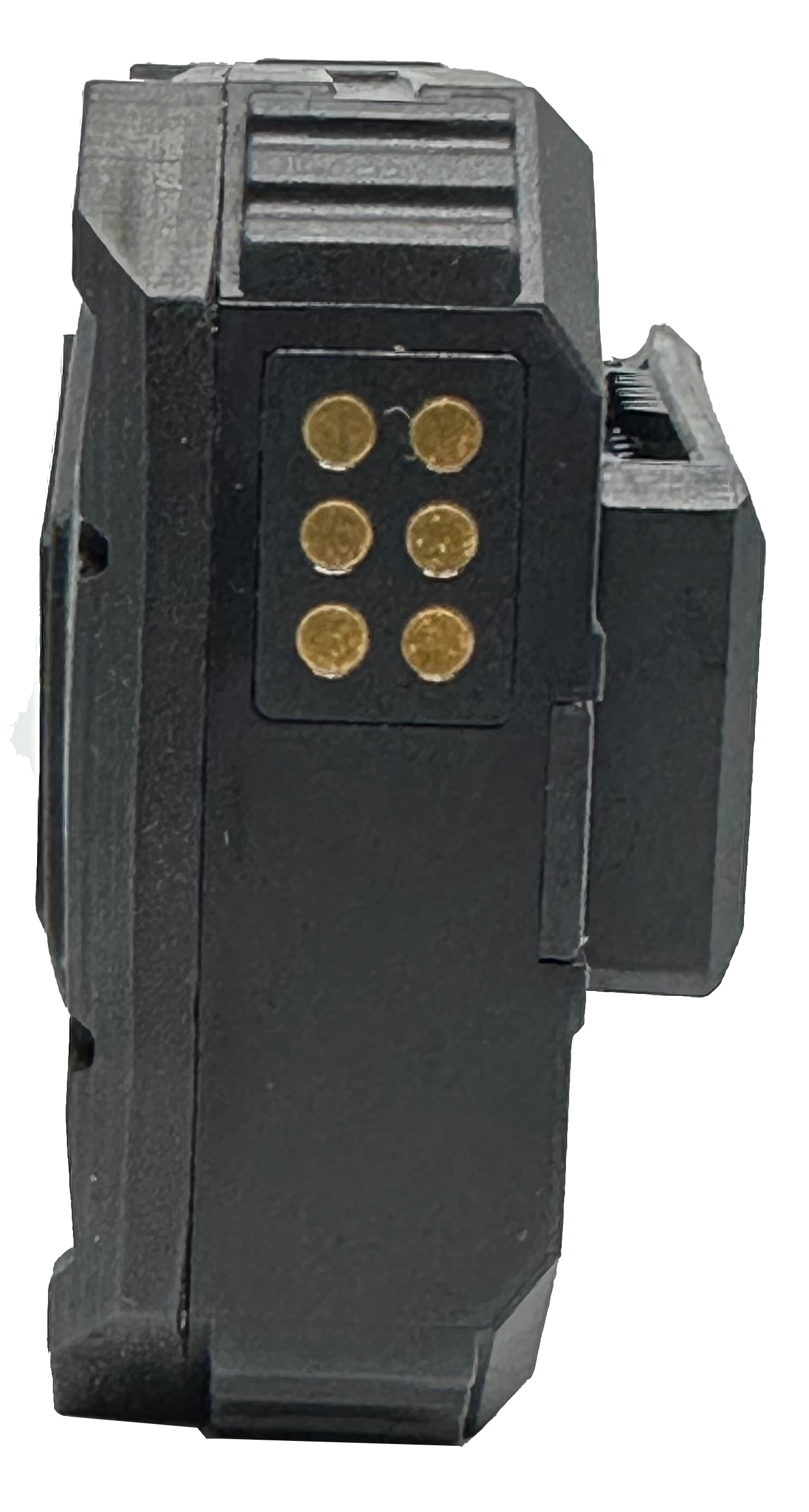

  • Long Lasting docking mechanism.



CITE™ V1X
SPECIFICATIONS
Product features 1. High Definition 1440P H.265 and H.264 video coding.
2. 143°angle lens, with distortion correction.
3. Low-light sensor.
4. IP67 protection.
5. MIL-STD-810G.

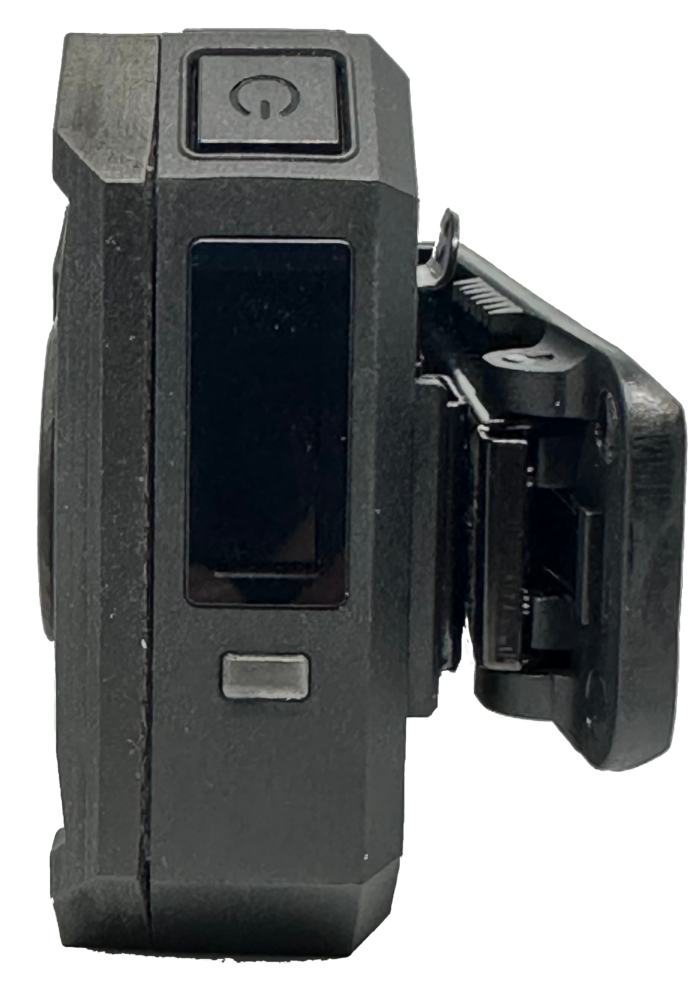

LCD Display Small LCD Display on top of camera.

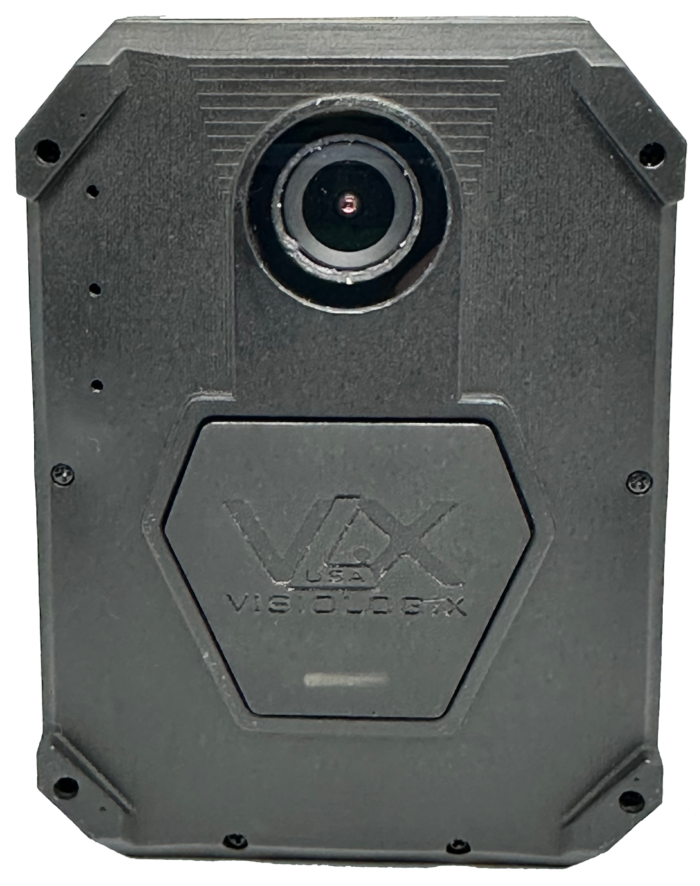

Lens (Angle) FOV (116°H/60°V) 143° Wide Angle.
Video 1920*1080(30fps),1280 *720(30fps), 848*480/(30fps). H.265/H.264 encode, MP4 format, synchronization of audio and video; seamless record (including the function of segment record, cycle record and capture record).
Stamps overlaying Badge ID, Date/Time, GPS.
Recording Four High-sensitivity mic, support separate recording, WAV, AI-Based background noised reduction.
GPS / G-Sensor YES.
SOS YES, requires 4G (4G Model).
Playback Video playback via VLX’s EMS Mobile App.
Buttons Large Front Camera Recording, Power, Function, Reset.
Camera Log All buttons pushed.
LED Indicators Recording and Status.
USB and Password USB 2.0 interface, charging function.
Storage 64GB (256GB Max – not field up gradable).
System settings Set various parameters. Such as, the time correction, screen off time, save battery, resolution, and so on.
Battery 4000mA polymer battery, direct charger, 4-hour charging time.
Continuous Recording Hours on single battery charge Estimated. 10H(1080P); 12H(720P); 14H(D1). Field battery replacement to extend recording hours. LED, GPS and Audio indicators set to OFF.
Live Stream Short Distance Live Streaming via 4G (about 15M ~ 50Ft). (4G Model)
Standby time About 24H.

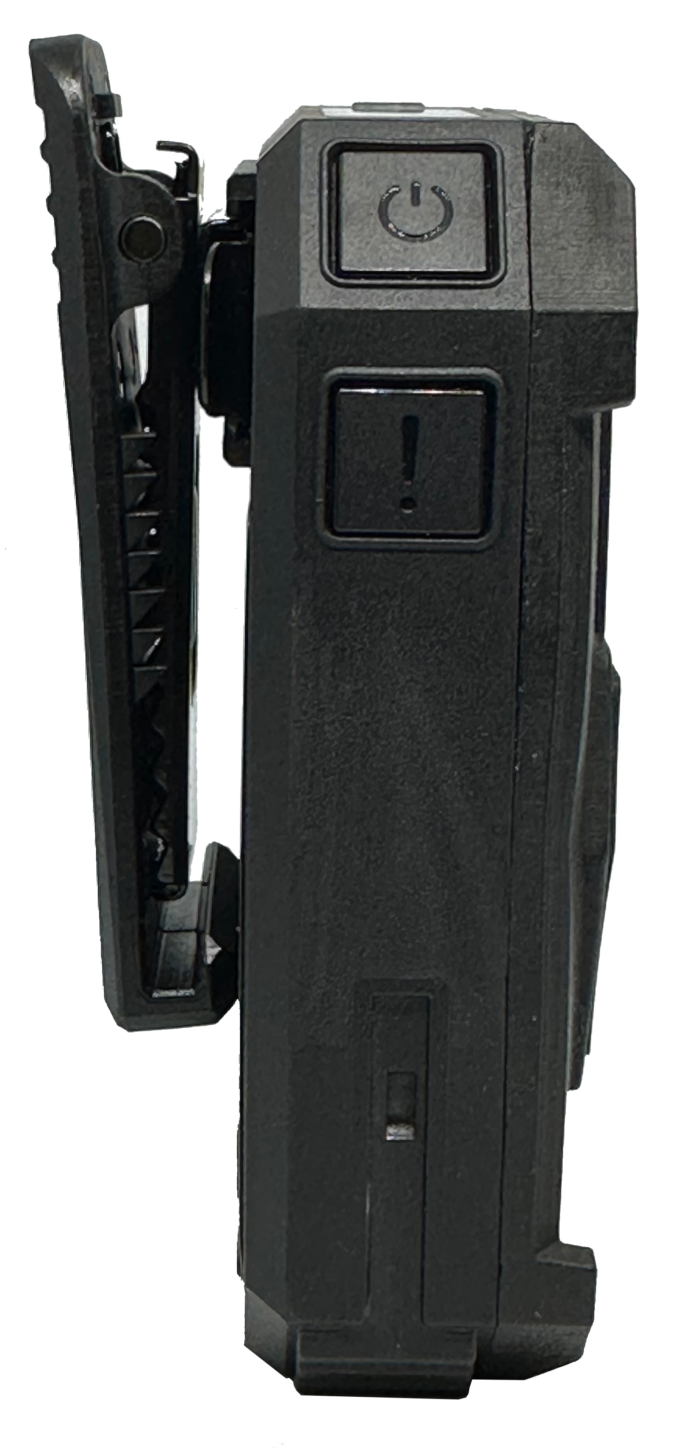

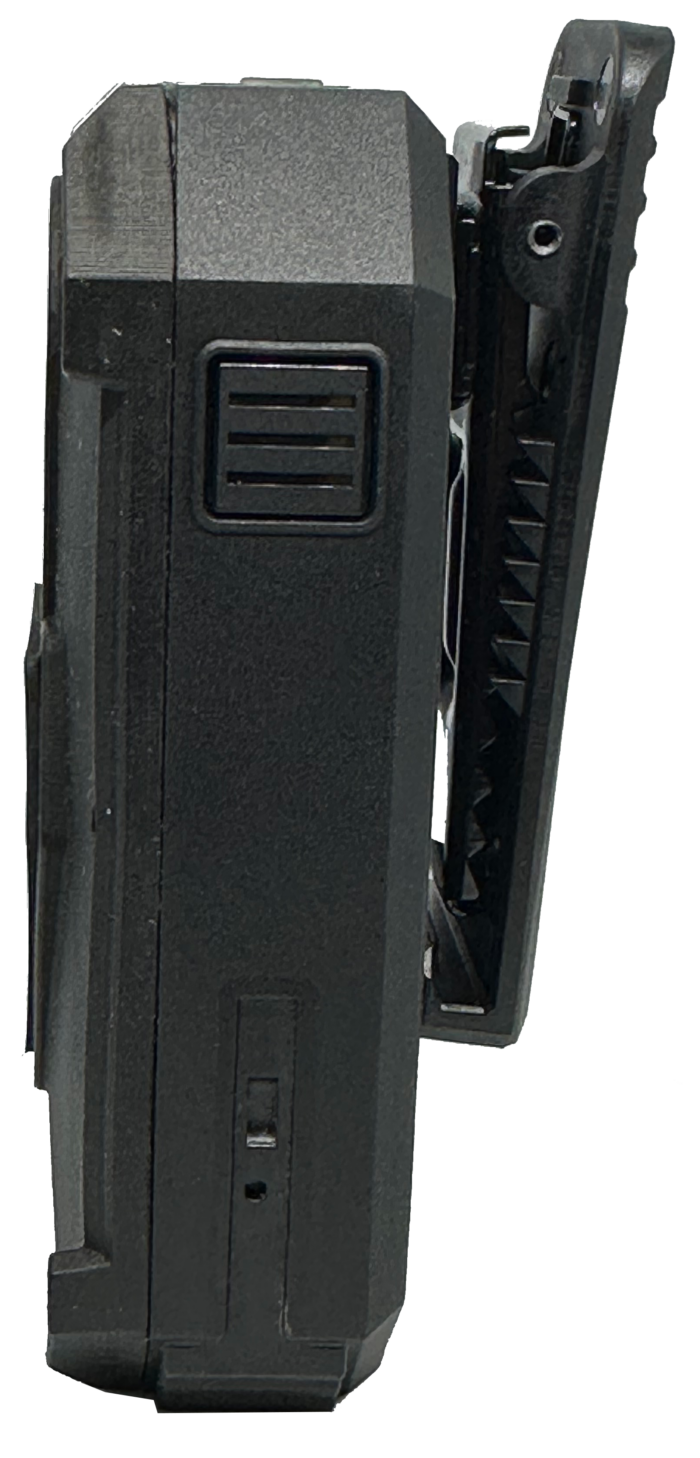

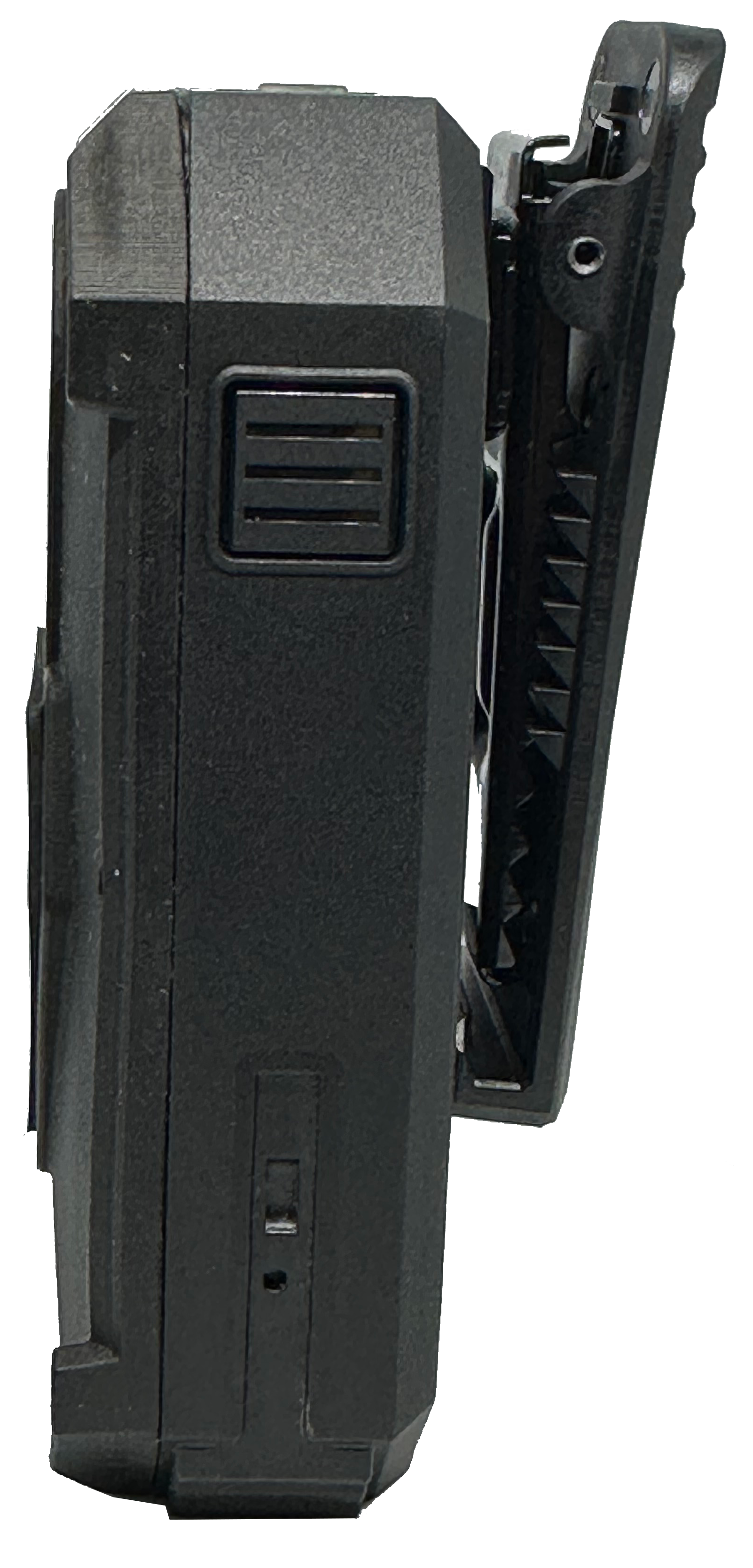

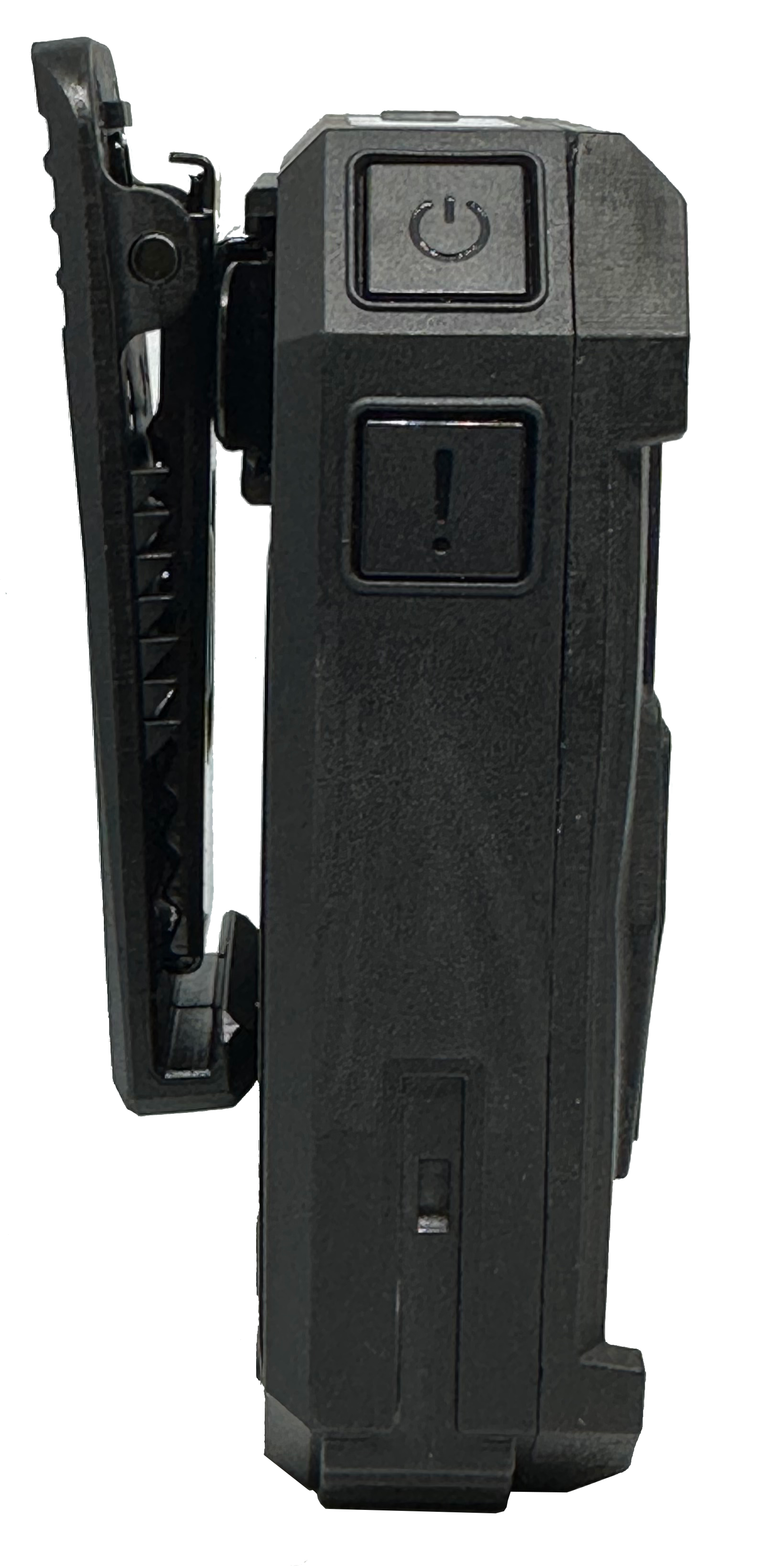

Professional back clip Can be worn on the shoulder or the waist, lens can rotate 180 degrees and fixed.
Free software CITE Configuration Tool (CCT) to download data and Change Camera Settings. Web based Evidence Management System is optional.
Pre and Post Recording 120s.
Recording Auto Reminder Yes (selectable 1m, 2m).
Indicators LED, Tone, Audio, Vibrate.
Single Button to Turn Off for Covert Operation.
Video Tagging/Marking Available in EMS Mobile. SmartApp for Android.
Camera Menu Controls Admin can restrict Camera Menu by listing certain menu items only on the camera.
Software Control Camera Settings Yes
Multi-Language Support English, Chinese (Simplified), Chinese (Traditional), French, German, Italian, Russian, Spanish, Ukrainian.
Mobile Client (Classify in the field) Use EMS Mobile Client (Windows based) work in conjunction with IDS Upload Station.
Working temperature -20° – 50° C (-40° – 122° F).
Working humidity 10%-90%.
Dimensions (LxWxH) 77 x 56 x 23mm (2.76”x1.09”x3.74”).
Weight 212g (7.48 oz).
IP Rating IP67.
Drop Test1 6 feet (1.8M) All drop test performed in function and non-function mode are based on US Military standards MIL-STD-810G 516.6.
Desktop/Vehicle Dock Station Optional
Magnetic Mount Optional
WiFi/BT Module Yes (AP6256 Based Chipset)
6-Port Docking Station Optional. Upload and Charging (1Gbps). Also charges extra battery.
Additional cost for Optional accessories Please contacts VisioLogix for Pricing. Camera Bracket, Vehicle Mounts, etc.
Warranty 1 Year





*The information contained herein is subject to change without notice and is provided “as is” without warranty of any kind. The warranties for VisioLogix products are set forth in the express limited warranty statements accompanying such products. Nothing herein should be construed as constituting an additional warranty. VisioLogix shall not be liable for pricing, technical and editorial errors or omissions contained herein.
